Plate Heat Exchanger PHE-200
PHE-200 · Plate Heat Exchangers

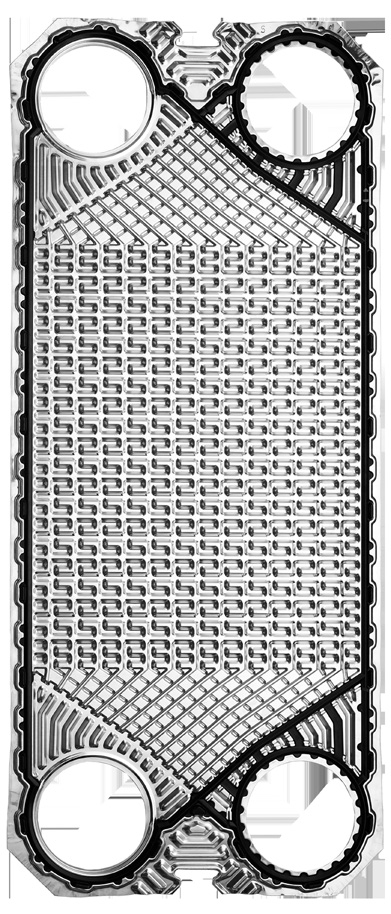

| 板片 / Plates | 316L / 钛 Ti |
| 压力 / Pressure | ≤ 1.6 MPa |
| 温度 / Temp | -20℃ ~ +180℃ |
| 型号 / Model | PHE-200 |
| Packing | Plywood case |
| Lead time | 15–30 days |
| Certification | CE |
Description

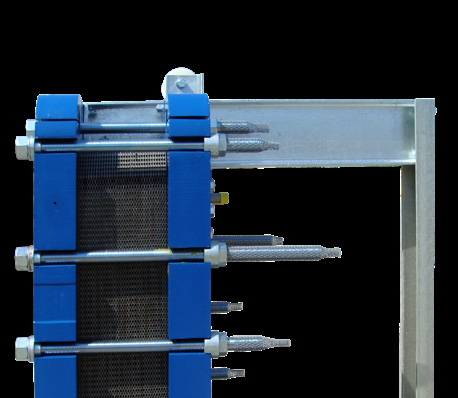

Gasketed plate heat exchanger, 316L/Ti plates — HVAC, food & beverage, chemical and hydraulic cooling; high U-value, small footprint. 200㎡ PHE
Features
换热效率高可拆卸清洗板片材质可选占地小
Detailed Introduction
Overview
Gasketed plate heat exchanger, 316L/Ti plates — HVAC, food & beverage, chemical and hydraulic cooling; high U-value, small footprint. 200㎡ PHE
Technical Specifications
| 板片 / Plates | 316L / 钛 Ti |
| 压力 / Pressure | ≤ 1.6 MPa |
| 温度 / Temp | -20℃ ~ +180℃ |
| 型号 / Model | PHE-200 |
Applications
Hydraulic/lubrication cooling, district heating, pool heating, dairy & beverage pasteurisation cooling.
Key Features
- High U-value
- Detachable
- Plate options
- Compact
Selection Guide
Pick plate material (316L/Ti) & count by flow, LMTD and fluid.
